TILTING PAD JOURNAL BEARINGS

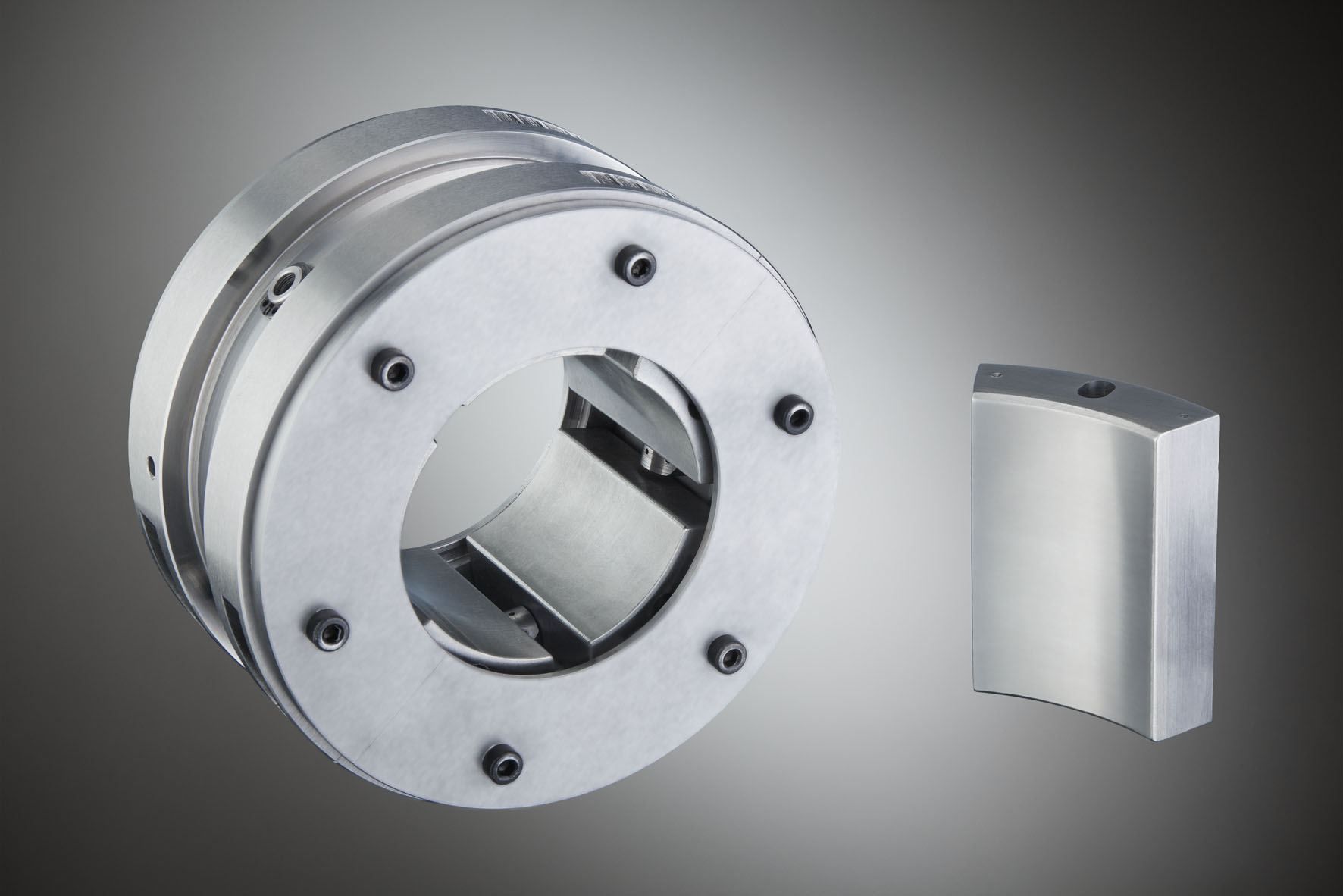

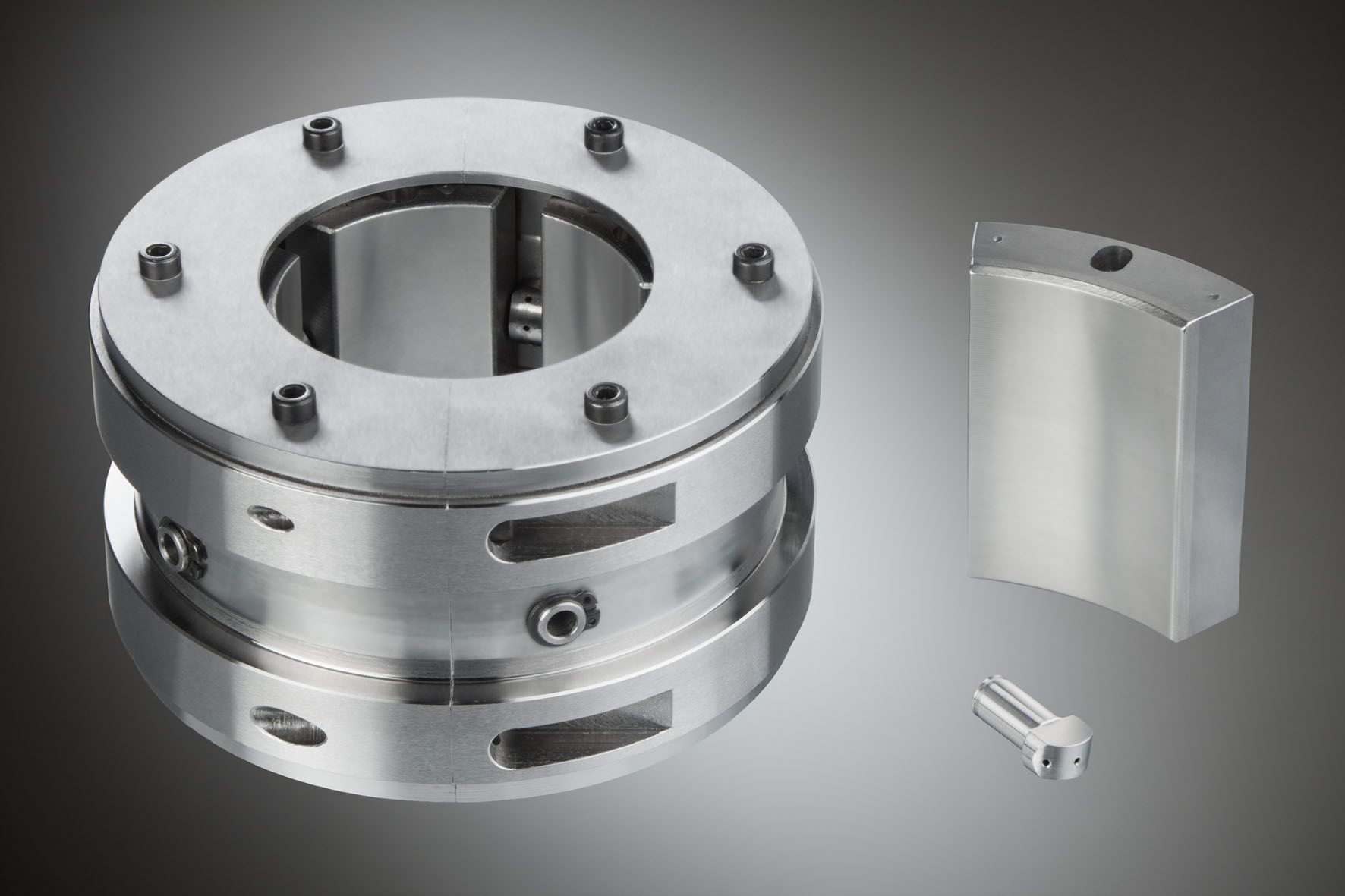

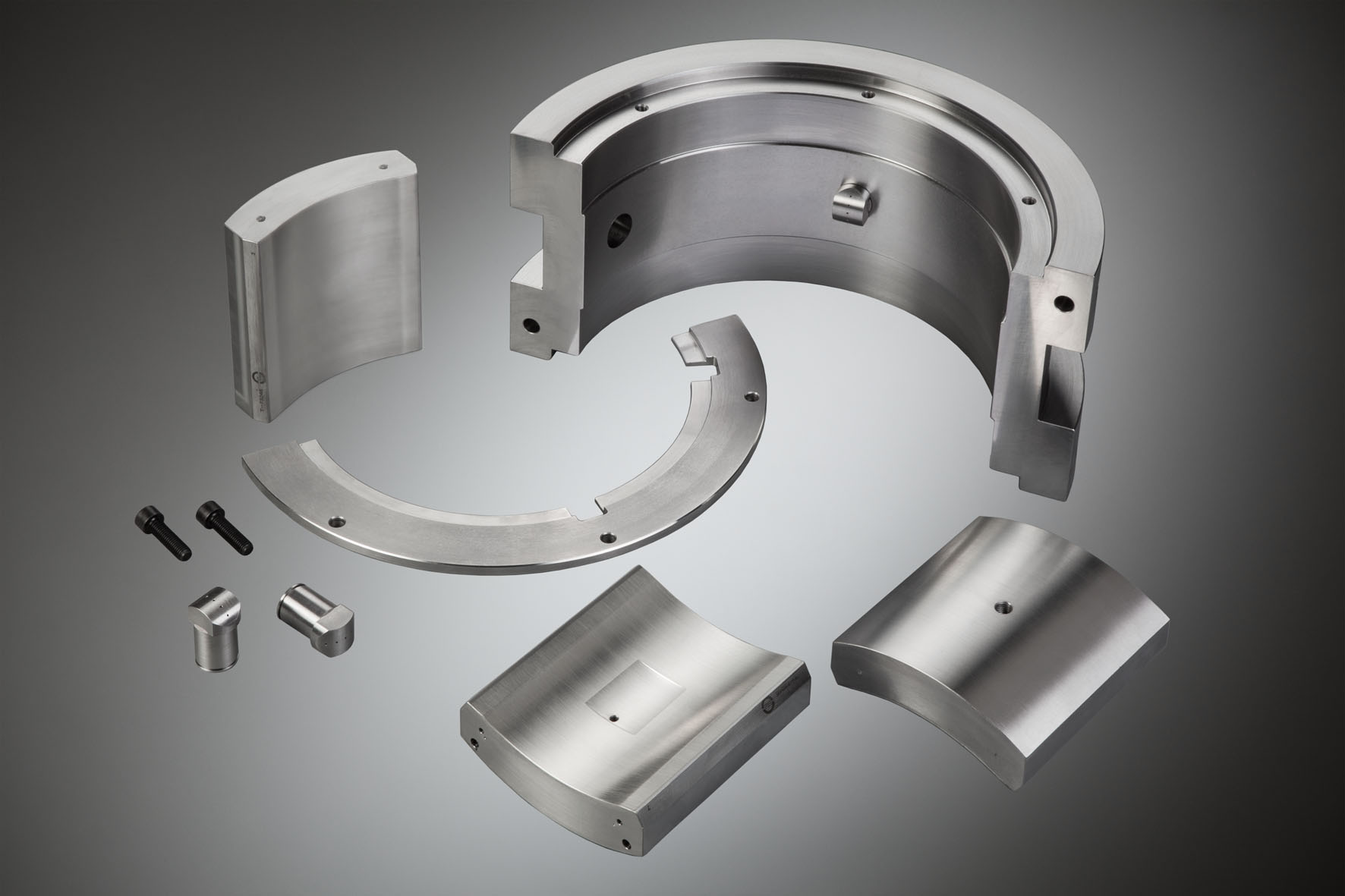

Tilting Pad Journal Bearings

Parameters

  • Shaft diameter from 30 up to 500 mm
  • Variable range of properties
  • Stable properties of bearing run
  • Various types of white metal

These bearings are used in high speed machines, mostly in turbo gearboxes, industrial turbines and turbocompressors.

Advantages of Tilting Pad Journal Bearings:
  • Maximum possible stability of rotating parts
  • Low sensitivity to load direction
  • Oil flow can be minimised, which reduces loss caused by friction
  • Standard components can be used
Advantages of GTW Tilting Pad Journal Bearings:
  • Designed for the transfer of radial loads with optimal dynamic features and minimum power loss
  • Optimised lubrication of bearings enables minimum power loss and decreased temperature
  • Simple and universal design, which enables the combination of axial/radial loads
  • Provision of static and dynamic performance data are standard
